Basic Building Parameters
The basic parameters that define a pre-engineered building are: Building width, Building length, Building height, Roof slope, End bay length, Interior bay length and
BUILDING SUBSYSTEMS

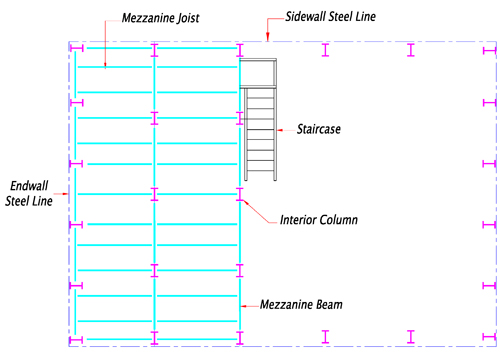

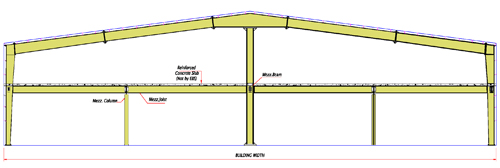

Mezzanine
A mezzanine is an elevated floor for use as office or store area. The mezzanine framing is connected to main frame and intermediate columns for support. The mezzanine framing consists of joist, beams and a profiled steel deck for concrete.
Cranes
A crane system improves material handling efficiency and increases productivity. A crane is a part of any workshop building. EBS can offer various types of crane systems.

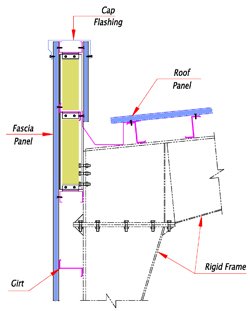

Fascia
Fascia may be designed to project out of sidewalls or endwalls to suit architectural requirements. Parapet fascias are flush vertical extensions of the sidewall and/or the endwall systems of building. The parapet usually extends up to conceal the roof ridge line. It hides small roof mounted mechanical units. The parapet fascia requires a valley gutter with internal down pipes.
Canopy
Canopy framing provides a sun shade as well as a weather shield. The canopy can be positioned at either the eave or over doorways etc. The canopy cantilever beam requires to be supported by the building frame and can have a tapered or straight profile.
Partition
Light weight internal partitioning provides the customer a means to sub-divide the building interior into structured space to house various activities. Office areas can be separated from process areas.
Roof platform
Roof Platform provides a support for heavy mechanical and other equipment. The platforms are mounted on the main frame rafters. The pipe support legs are weather sealed with profiles rubber flashings or stub brackets are provided to connect the column above roof sheeting.
Roof Monitor
Continuous roof monitors provide large ventilation and lighting requirements. They are made from lightweight components and provide a cost effective ventilation and natural light system with pleasant appearance.
Curved Eave
Curved eave will provide elegant appearance to the building. When building width is more and high rain fall, curved eave shall be with gutter to collect water and drain from inside the building. Small buildings, simple curved eave without gutter is recommended. Projected curved eave will give more architectural appearance.

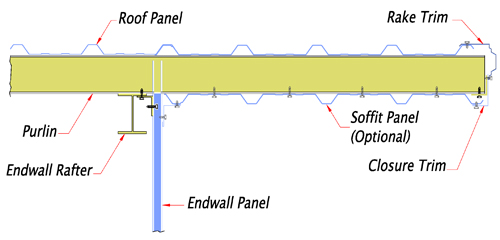

Roof Extension
Roof Extensions, when required at endwall nominally 1.0m to 1.5m, the overhang is created from the purlin member extensions with cantilever from the centre of the endwall frame. Trims are furnished at the end of cantilever and soffit panel is added to conceal structural framing.
Staircase and handrails
Staircases are used in steel buildings to access mezzanine and areas requiring maintenance. Staircases are of different types like Single Flight, double Flight and Single Flight with mid landing. All these stairs can be supplied either in chequered plate treads, grating treads, or U-shape treads to be filled with concrete. Non-standard stairs also can be designed and supplied as per architectural requirements.
Single Skin Panels
The panels used in the construction of DASHPROJECTS Pre-Engineered Buildings are composed of the following:
Base metal of either Galvalume coated steel conforming to ASTM
Steel Joists
Open web steel joist (OWSJ) is a lightweight steel truss consisting, in the standard form, of parallel chords and a triangulated web system, proportioned to span between bearing
The engineering section employs a team of design and detailing engineers equipped with the latest and most advanced software for both disciplines. All works are closely monitored to ensure that it
Steel Fabrication
ASSENT is one of the leading steel fabrication company in Dubai. We deliver experienced and dependable steel manufacturing and fabrication solutions for
Steel Erection
With over a decade of experience and a team of industry experts, ASSENT is a trusted Steel Erection Company in Dubai, UAE. We aim to provide a complete,
ASSENT provides top-of-the-line structural steel fabrication services. ASSENT works with the best designers and engineers to ensure that all projects meet high standards of excellence and to provide
The components of a Pre-engineered building (PEB) are manufactured at our plant according to the carefully engineered design, drawn as per the client’s specific project requirements. This
Cladding
ASSENT is one of the largest manufacturers of cold-rolled steel frame structures in the Middle East. We offer a wide range of panels and profiles to suit the industrial and commercial needs
EBS is capable of designing all kind of high complex steel structures such as high rise buildings, airport terminal buildings and industrial structures for process, petroleum and power plant
EBS has a total site area of 140,000 sq/m including 45,000 sq/m of covered fabrication area and 70,000 sq/m of storage area with the capacity to produce in excess of 70,000t of fabricated steelwork
Since the formation of Emirates Building Systems in 1997, Emirates building Systems has developed an excellent reputation and strong presence as one of the regional’s premier steel fabricator
Industrial Structures and Buildings.
Its design capacity, its substantial resources, its considerable output, its commitment to service make EBS a choice supplier for large industrial and
Pre-engineered buildings are defined by the following geometrical parameters: Building width, Length, Eave height, Roof slope, Sidewall bay spacing, end wall bay spacing and main frame module
EBS offers profile to suit structural, architectural, thermal lighting and corrosive circumstances. Structural constraints are satisfied by the range of corrugation spacing, thickness and materials
EBS also offers steel deck for steel buildings or mezzanines to suit structural specifications. There are two profiles available in EBS production line; they are EBS50X225 and EBS75X300 with covering
EBS offers fabrication and supply of crane bridge girders for over head cranes. Most girders are from plate formed box section. EBS plant is well equipped with advance fabrication facilities for
On the Middle-East and Regional scale of the Construction Business, CSCEC ME L.L.C. has been a world class leaders and has executed in some of the complex projects of various specialised disciplines
General Contracting
In normal traditional engagement for project deliverables in the construction industry where the Owner engages the Designer and Contractor separately, CSCEC-ME
China State Construction Engineering Corporation Middle East (CSCME) Infrastructure Division has been operating in the region since 2006, in these 6 years the division has added significant strength
China State Construction Engineering Corporation Middle East (CSCME) Mechanical, Electrical and Plumbing (MEP) division has been operating in UAE since 2003 along with the core CSCME’s building
The PEB Steel Structure of a Pre-Engineered Steel Building generally accounts for over 80% of the weight of the Pre-Engineered Steel Building. This 80% is an average and may change plus or
The unit of measure of hot rolled structures (structural steel) is the metric ton (MT). Hot Rolled Steel Structures applications include Multi Storey low rise buildings, equipment
Building Accessories and special buyouts (SBO’s)include sliding doors, rollup doors, personnel doors, fiberglass insulation, sandtrap louvers, windows, ridges ventilators. Some are
Mabani erection team is comprises of highly qualified and well trained site engineers and safety officers. The team has completed more than 500 projects in the GCC, Meddle & Far
Blast & Paint
Mabani state of the art blasting, painting & material handling system produce the highest quality with most enduring coating finish. Mabani has the most advanced and
The basic parameters that define a pre-engineered building are: Building width, Building length, Building height, Roof slope, End bay length, Interior bay length and Design loads.
Width
Length
Zamil Steel pre-engineered buildings are custom-designed to meet your exact requirements. The most common Primary Framing systems are shown below. Practically any frame geometry is possible. Consult
Purlins, girts and eave struts are secondary structural members used to support the wall and roof panels. Purlins are used on the roof; girts are used on the walls and eave struts are used at the
Nearly 70% of all single storey non-residential construction now utilizes preengineered buildings. Applications range from small car parking sheds to 90 m (+), wide clear span aircraft hangars to
The panels used in the construction of Zamil Steel Pre-Engineered Buildings are composed of the following:
Base metal of either Galvalume coated steel conforming to ASTM A 792M Grade 345B or
Liner panels have one metal skin surface with polystyrene foam board adhered to it for better insulation. In the past 20 years, end-users, contractors and consultants have become increasingly aware
Eave gutters, downspouts, curved eaves, wall flashings and trims are produced from the same material (base metal, thickness, substrate coating, paint finish and color) as the wall panels of the
Drawings
Zamil Steel produces its own shop drawings for the fabrication of your steel joists, trusses, structural steel components, steel deck and girts. For project design, bid preparation or
Open web steel joist (OWSJ) is a lightweight steel truss consisting, in the standard form, of parallel chords and a triangulated web system, proportioned to span between bearing points.
The main use
Steel Decks
Steel deck is a cold formed corrugated steel sheet supported by steel joists or beams. It is used to support concrete or insulating membrane of a roof.
Zamil steel decks are
Combining Hambro steel joists with poured concrete, the system consists of hybrid concrete/steel T-beams running in one direction and an integrated continuous slab in the other (see drawing below).
