CAST STEEL GATE, GLOBE AND CHECK VALVES
Design Standards:
API 600, API 6D, ASME B16.34, API 603
Materail Grades:
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12,

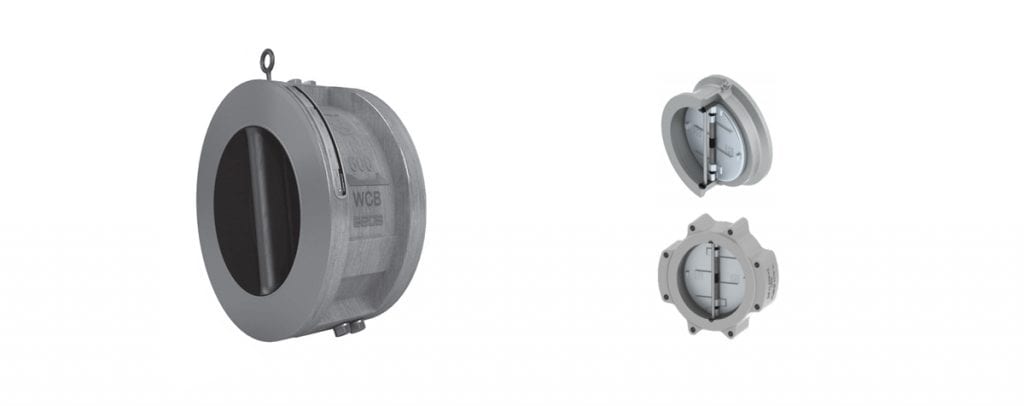

Duo check cast steel valves
| Design Standards: | API 594 |
| Materail Grades: | WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40 (Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Former Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M (Hastelloy B2), CW6MC (Inconel 625), |
| Sizes: | 2” to 36″ |
| Pressure Class | 150# to 2500# |
| Ends: | Wafer, lugged, Double Flange RF & RTJ |
| Special features | Compact body, one-piece wafer design, Spring loaded seat allows for smooth disc closure, preventing premature wear and tear, Dual plates offer maximum strength with minimum opening time, Full contact metal to metal seats maintain positive shut-off at minimum working pressure |
Design Standards:
API 602
Materail Grades:
A105,LF2, LF3, F1, F11, and F22, F5, F5a, F9, F304, F316, F304L, F316L, F51, F55, Inconel, Incoloy, Mone
Sizes:
Design Standards:
API 6D
Materail Grades:
A105 or WCB, LF2, LF3 or LCB, LCC, F316, F347 or CF8M, CF8C, F51 or CD3MN, F55 or CD3MWCuN.
Sizes:
2” to 60″
Pressure
Design Standards:
API 6D, MSS-72 & API-608
Materail Grades:
A105 or WCB, LF2, LF3 or LCB, LCC, F316, F347 or CF8M, CF8C, F51 or CD3MN, F55 or CD3MWCuN.
Sizes:
1/2” to
Design Standards:
API 6D
Materail Grades:
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, 5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CF3, CF3M, CG3M, CN7M (Alloy 20), CN3M (Alloy
Design Standards:
ASME B16.34
Materail Grades:
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel
Design Standards:
API 6D
Materail Grades:
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1,
Design Standards:
API 6D
Materail Grades:
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1,
Design Standards:
API 609, AWWA
Materail Grades:
A126 CI, WCA, WCB, WCC LCB, LCC, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, 6A. Aluminum Bronze like 95500,
Design Standards:
API, MFRS
Materail Grades:
A105N, F60, A350, LF2, LF6, A182 F316L, F51, F44, F53, F55, Nickel Al – Bronze, Hastelloy C276, Inconel 625 or 825, Monel K 400 and 500
MODIFICATION & REPLACEMENT SOLUTIONS
With our expertise in Oil and Gas engineering services, our collaborative engineering service capabilities cover:
Testing of
